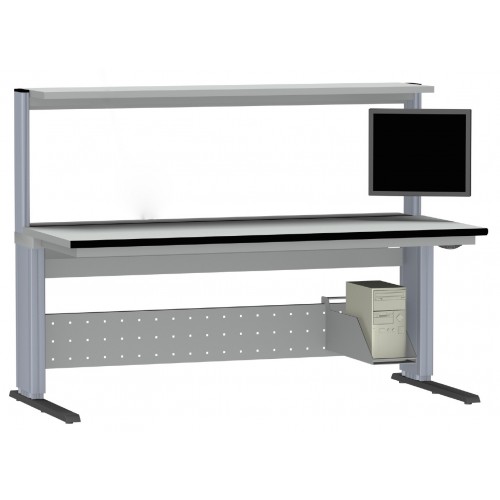

De Primus Basic is a high quality ESD-safe electronics worktable. It has an integrated electrical height adjustment system with a wide range.
This worktable consists of:

  • ESD-safe worktable W1800xD900xH700...1200mm with electrical height adjustment
  • elevated ESD-safe shelve W1800xD400mm, adjustable
  • set aluminium profiles for the shelve
  • cableduct for the shelve
  • mains sockets (6pcs)

Some remarkable characteristics are:

  • sturdy and high load capacity (200kg) thanks to the robust C-frame construction with integrated motors and the welded tubular steel frame
  • the aluminium profiles can be equipped with flexible cable ducts that can guide wiring safely and invisible from any level into the cable duct
  • the large "volume conductive" worktop for optimal ESD-protection is finished with a scratch resistant HPL-topcoat and is also resistant to hot soldertin and acids and bases
  • the frontedge of the worktop is equipped with a replacable and  ergonomically shaped edgestrip, it protects the worktop from impacts and improve ergonomics
  • the large cable duct offers much space to safely store wiring and cables, as an added advantage cables and wiring can be continued from table to tabel, your worktable always looks tidy and neat
  • a hinged flap lets you open the cable duct easily from the front side of the table
  • as an option extra socket strips with Plug and Play wiring can be mounted in the cable duct to connect your electrical tools and equipment
  • an adjustable instrumentshelf can be set on any desired height and can be steplessly tilted by 30°.

The aluminium C-foot gives the worktabel a chique, representative look.
The instrument shelf has a high load capacity and offers much room for measuring equipment and other accessories.
Dim: W1800xD900xH700...1200mmmm (other dimensions available)


  Ordering form/datasheet

R0-5B.EC ZSO Primus Basic ESD-safe electronics worktable with instrument shelf | electrical height adjustable

  • Brand: Elabo
  • Product Code: R0-5B.EC ZSO
  • Availability:

Tags: Elabo, R0-2B, electronics worktable
